Terminal classification
China Terminal Category: Terminals can be divided into European terminal series, plug-in terminal series, fence type terminal series, spring-type terminal series, rail terminal series, through-wall terminal series and so on.1. European terminal:
Is the most cost-effective form of existing wiring technology

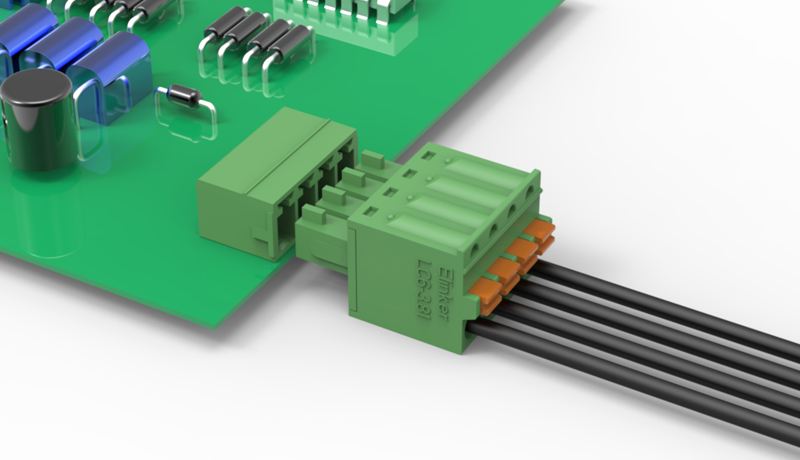

The two parts are connected by plugging and unplugging, one part presses the wire tightly, and then inserts the other part. This part is welded to the PCB board. This is connected to the bottom mechanical principle. This anti-vibration design ensures long-term gas-tight connection and reliability of the finished product. Both ends of the socket can be assembled with mounting ears, and the mounting ears can largely protect the tabs and prevent the arrangement of the tabs from being poorly positioned. At the same time, this socket design can ensure that the socket can be properly inserted into the mother body. The socket can also have assembly buckles and locking buckles. The assembly buckles can be more firmly fixed to the PCB board, and the locking buckle can lock the mother body and the socket after the installation is completed. A variety of socket designs can be used with different mating methods, such as horizontal, vertical, or tilted toward the printed circuit board. Different methods can be selected according to the customer's requirements. You can choose either metric or standard gauges.

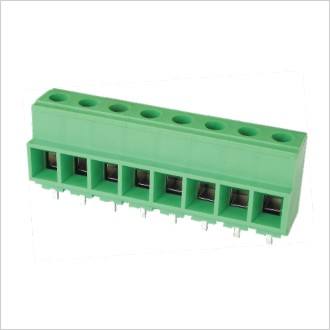

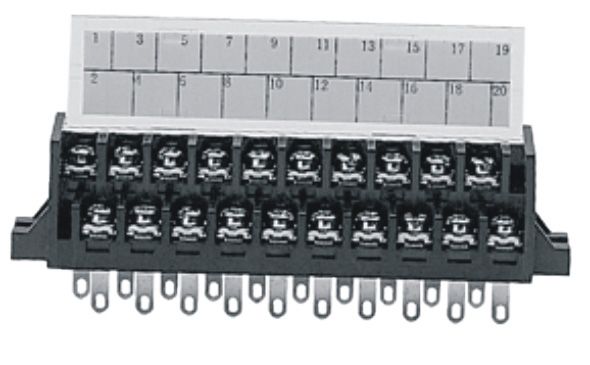

It is able to achieve safe, reliable and effective connection, especially in the use of large current, high voltage applications.

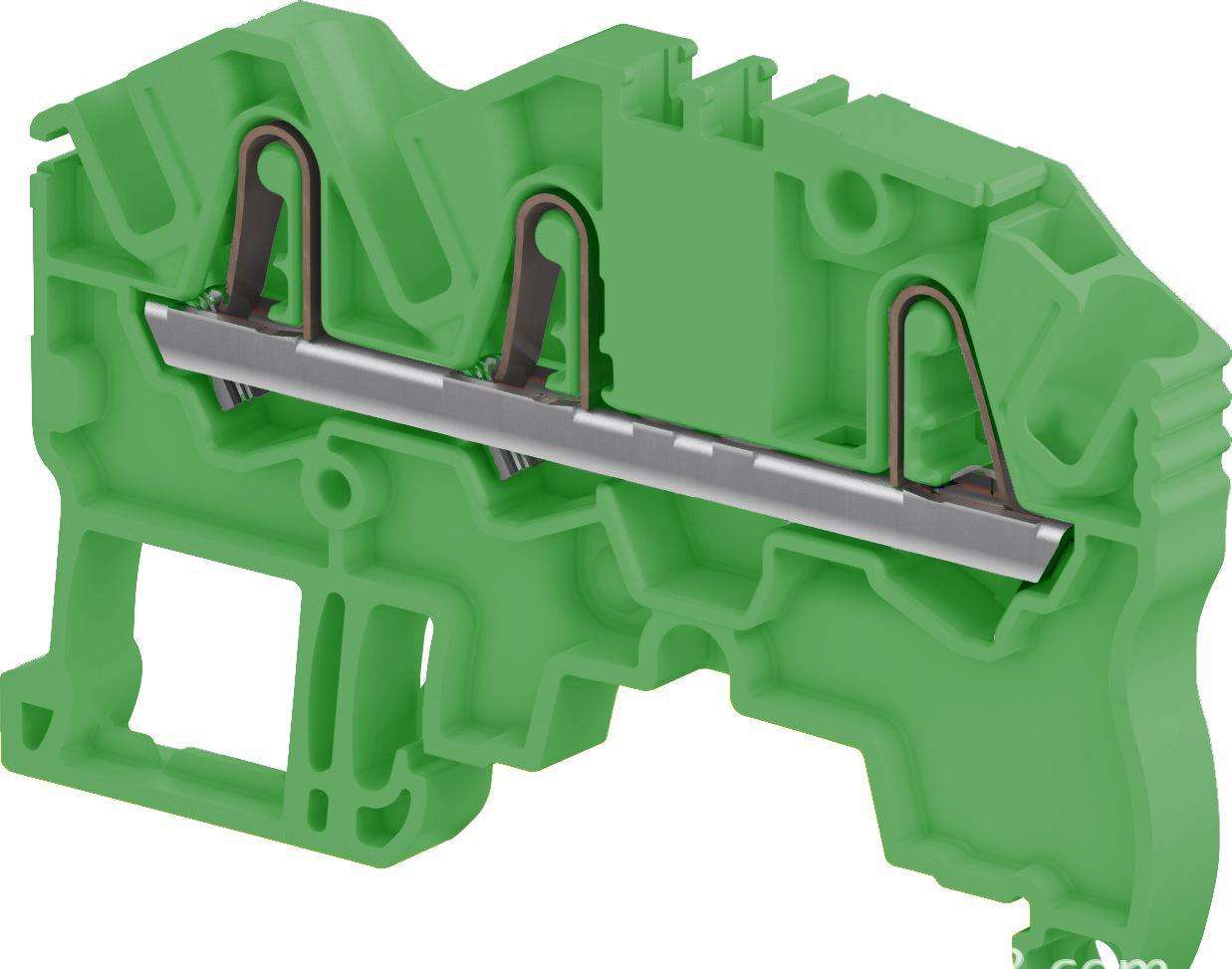

4. Spring type terminal block:
New terminal blocks using spring-loaded devices have been widely used in the world's electrical and electronic engineering industries: lighting, elevator lift control, instrumentation, power, chemical and automotive power.

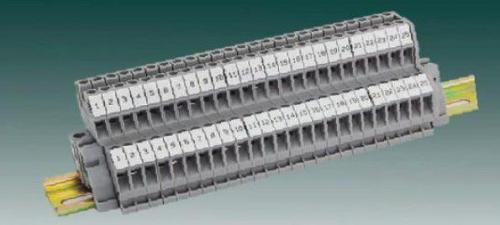

The use of reliable screw connection technology, electronic tolerance technology and the latest electrical connection technology are widely used in power electronics, communications, electrical control and power supply and other fields.

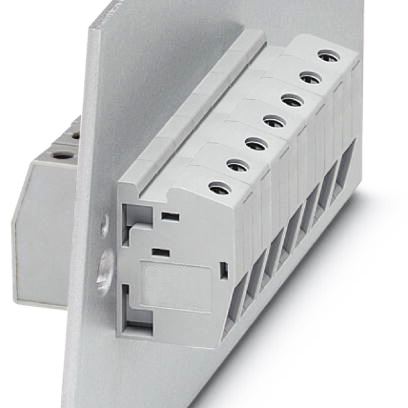

Pressure lines and unique thread locking design make the wiring connection reliable and safe. This series of terminal design is elegant, can be used with a variety of accessories, such as short circuit, marking, baffles, etc.
